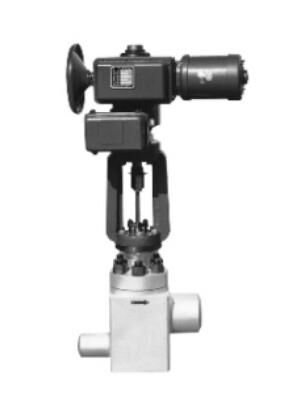

Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve selection starts with the service duty
A Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve is evaluated for modulating process control. A throttling element changes effective flow area in response to a control signal. Installed characteristic, Cv, pressure recovery, trim velocity and actuator resolution determine control quality.
Before quoting this configuration, close sleeve-guided or staged trim for stability, pressure-drop distribution and maintenance; minimum-flow pump protection with two-position or modulating severe pressure reduction and record all process, mechanical, operating and documentation assumptions.
Sleeve
Sleeve-guided or staged trim for stability, pressure-drop distribution and maintenance. Provide sizing cases, stage duty, port geometry, erosion/noise limits, leakage class and removal clearance.
Minimum-Flow
Minimum-flow pump protection with two-position or modulating severe pressure reduction. Provide pump curve, minimum continuous stable flow, trip/coast-down, inlet/outlet conditions, required action and transient timing.
Application envelope
Confirm every pressure, temperature, differential-pressure and cycling case for this Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve.
Order-specific boundary
Published information supports initial screening; final size, class, materials, trim, operation, tests and documents are fixed in approved order records.
Published configuration data for Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve—confirmation required
The values below are transcribed from the previous public product listing so useful model information is not lost during the quality rebuild. They are not a universal available range, certificate or order commitment. Confirm every value in the accepted quotation, tag datasheet and approved drawing.
| Parameter | Previous listing | Required order check |
|---|---|---|
| Product type | Not stated in the previous public listing. | Confirm the exact model, construction and supplied configuration. |
| Nominal size / DN | 80-200 | Confirm each ordered tag and available trim or bore combination. |
| Pressure rating | PN64-420 ANSI Class 900-2500 | Confirm governing rating standard, class and temperature basis. |
| Temperature | 17℃~+300℃ | Confirm design, operating, startup and upset metal temperatures. |
| End connection | RF, RJ, BW, lens pad | Confirm standard, facing, schedule, bore and mating interface. |
| Flow coefficient / characteristic | switch two position | Confirm calculated cases, trim, travel and installed behavior. |
| Body / bonnet material | 20# forging | Confirm component grade, product form, heat treatment and records. |
| Trim / closure material | stainless steel nitride hardened Optional: none Features: – Cast straight or forged straight, angle valve body -Sleeve parts can be balanced or unbalanced -The throttling surface is separated from the sealing surface, and the surfaces of the valve core, valve | Confirm every wetted component, hardness, coating and pairing. |
| Seat / seal material | Not stated in the previous public listing. | Confirm compatibility, leakage criterion and pressure-temperature limit. |
| Operation / actuator | Not stated in the previous public listing. | Confirm worst-case load, fail state, utilities, speed and accessories. |
| Leakage basis | IV class Material: | Confirm standard, edition, test direction, medium and measurable acceptance. |
Evidence boundary: where the previous listing was incomplete or awkwardly translated, this page does not guess a value. Raymon Valve should replace provisional web data with the controlled product datasheet when it is available.
Connect each selection decision to a controlled record
Use the matrix to close decisions often hidden behind the short description “Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve.”
| Review area | Engineering question | Required record |
|---|---|---|
| Sizing cases | Minimum, normal, maximum, startup and upset cases require verified fluid properties and pressures. | Capture the selection basis, approved deviation if any and the record used for acceptance. |
| Trim duty | Cavitation, flashing, choked gas flow, noise, erosion and rangeability must be evaluated. | Capture the selection basis, approved deviation if any and the record used for acceptance. |
| Actuator | Required thrust or torque, fail action, stroking speed and utility supply must be coordinated. | Name the controlling document, responsible reviewer and inspection or calculation record. |
| Accessories | Positioner, solenoids, limit switches, air set and hazardous-area requirements form one package. | Make this requirement auditable through the order datasheet, design review and inspection plan. |
| Sleeve | Provide sizing cases, stage duty, port geometry, erosion/noise limits, leakage class and removal clearance. | State the measurable requirement and connect it to a drawing, procedure or test result. |
| Minimum-Flow | Provide pump curve, minimum continuous stable flow, trip/coast-down, inlet/outlet conditions, required action and transient timing. | Resolve the open point before release and retain tag-specific evidence in the final dossier. |
Record exact standard designations and contract editions; resolve scope gaps and purchaser options before manufacture.
Service conditions that can change or reject the selection
Do not size a control valve from pipe diameter alone; incorrect Cv can cause poor resolution, noise, cavitation or premature trim damage. Also review orientation, transients, cycling, contamination, access and consequences of internal or external leakage.
Make every critical claim traceable to the valve tag
Evidence should identify the supplied configuration, revision, heat or lot and applicable test procedure. Use the valve standards guide to separate product, rating, dimensional, end-connection and test scope.
Design basis
Tag requirements, design review, materials list and approved exception register.
Material identity
Pressure and wetted-part traceability plus welding, heat treatment, hardness and inspection evidence.
Inspection and tests
Inspection releases, controlled test methods, instrument identity, measurements and final acceptance.
Sleeve construction must be checked for fluid cleanliness, velocity and replaceable-trim access. The valve is part of the pump-protection system and requires coordination with recirculation piping and control logic.
Do not infer certification or guaranteed performance from this page. Accept only the order-specific evidence required by the purchaser.
Data to send for a technically complete quotation
Send tag identity, quantity, fluid, all design and operating cases, line interface, function, flow data, materials, operation, testing, inspection and turnover scope.
For a Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve, also highlight sleeve-guided or staged trim for stability, pressure-drop distribution and maintenance; minimum-flow pump protection with two-position or modulating severe pressure reduction. Identify missing inputs and provisional selections so they can be closed before purchase order release.
Send the service cases for engineering review
Provide the actual application; the response will separate confirmed requirements from assumptions and identify the checks still required.
Use the related pages to close remaining decisions
Convert Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve from a broad request into an auditable engineering decision
This section addresses the decision a visitor is likely trying to complete—not merely the meaning of the page title. Use it to identify required inputs, compare the proposal and specify the record that will prove acceptance.
| Decision | What to do | Evidence to retain |
|---|---|---|
| Problem statement | For Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve, define the required system outcome, failure consequence and measurable acceptance before choosing hardware. | Functional requirement |
| Feasible routes | Compare at least the practical construction, material, sealing and actuation alternatives, including reasons for rejection. | Option and trade-off matrix |
| Boundary conditions | Check every normal, transient, startup, shutdown, maintenance and utility-loss case that can change the solution. | Approved application data |
| Validation | Connect each claimed benefit to a calculation, drawing, qualification, inspection or package-level test that applies to the order. | Verification and evidence plan |
How this Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve guide should be used
This page does not claim that a named person, certificate, qualification, installed project or performance result applies to a future order. Product compliance is confirmed only when the accepted quotation, approved drawing, procedures and final manufacturing/test records identify the supplied configuration.
Technical requirements and standards can change. Verify the official source, contract edition, project precedence and purchaser options. See our technical content review and evidence policy, company information, inspection approach or submit a correction or application question.
Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve questions
What information is required to select a Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve?
Provide the medium and composition, all pressure and temperature cases, nominal size, flow or differential pressure where relevant, required function, end connections, materials, shutoff criterion, operation, standards, inspection and documentation. For this configuration, the review must specifically address sleeve-guided or staged trim for stability, pressure-drop distribution and maintenance; minimum-flow pump protection with two-position or modulating severe pressure reduction.
Which standards apply to a Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve?
The answer depends on the product construction, project jurisdiction and purchaser specification. A product standard may cover design scope while separate standards govern pressure-temperature rating, dimensions, ends, pressure testing, fire safety, emissions or materials. Sleeve construction must be checked for fluid cleanliness, velocity and replaceable-trim access. The valve is part of the pump-protection system and requires coordination with recirculation piping and control logic.
How should Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve pressure and leakage testing be specified?
Separate pressure-boundary, closure, functional and any special testing. Record the procedure, edition, duration, allowable leakage, intervention point and final evidence.
Can a Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve be supplied with an actuator?
Automation requires more than matching a mounting flange. Verify maximum load through travel, minimum supply, coupling/stem capacity, stops, controls and required failure response.
When should a Sleeve-Type Boiler Feed Pump Minimum-Flow Control Valve not be selected?
Do not select it when its qualified construction cannot satisfy the process, shutoff, materials, dynamics, maintenance or documentation requirements. Do not size a control valve from pipe diameter alone; incorrect Cv can cause poor resolution, noise, cavitation or premature trim damage. The alternative should be chosen only after comparing the complete service duty.
