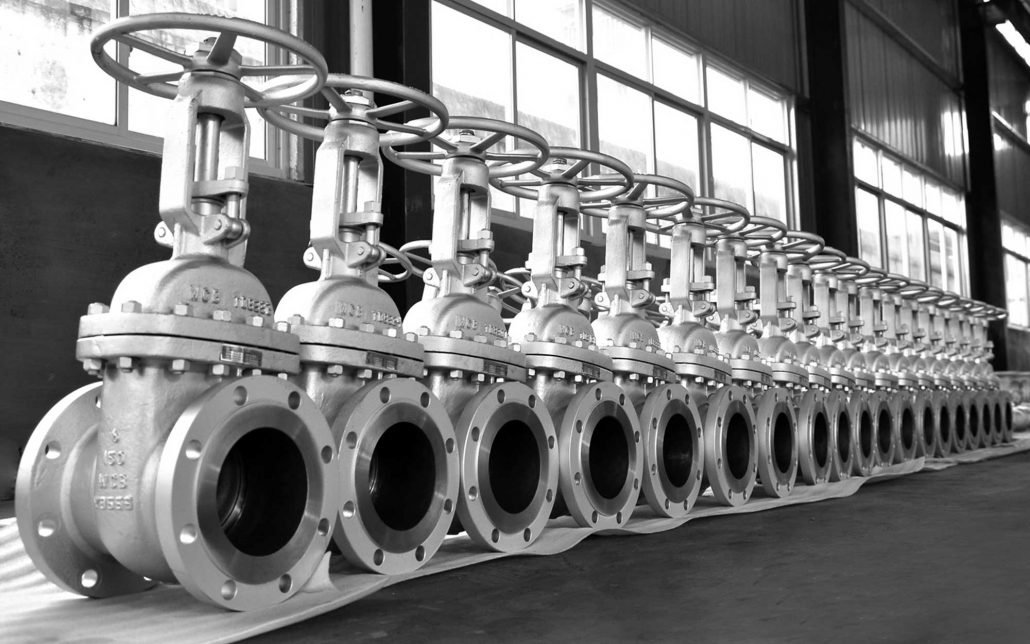

Industrial Valve Manufacturing Process: Controls, Evidence and Release Gates
An industrial valve manufacturing process is a linked sequence of technical decisions, material identities, controlled operations, inspections and release records. The useful question is not simply how a valve is made, but how the approved datasheet remains connected to the pressure boundary, trim, sealing system, dimensions, assembly, testing and final dossier. The exact route varies by valve type, pressure class, size, material, service and purchaser requirements, so the manufacturing plan must be frozen for the actual project rather than copied from a generic flow chart.
Six control layers that keep the supplied valve aligned with the order
Translate the purchase order, datasheet, specifications and applicable standards into approved drawings, bills of material, procedures and acceptance criteria. Unresolved conflicts should become formal technical queries before material or production release.
Define whether pressure-containing parts are cast, forged, fabricated or bar-stock, then connect heat numbers, certificates, receiving checks and any specified verification to the component and final valve serial or tag.
Heat treatment, welding, repair, hardfacing, coating and nondestructive examination require approved methods, qualified resources where specified, controlled parameters and records that survive into the project dossier.
Critical sealing surfaces, wall sections, end connections, face-to-face dimensions, stem guidance and actuator interfaces need drawing-based inspection at the stage where a nonconformance can still be identified and contained.
Cleanliness, component identity, orientation, fastener and packing practices, operating torque or thrust and accessory configuration should follow an approved assembly route rather than depend on final testing alone.
Pressure and functional testing, coating, marking, documentation review, preservation and packing form the final release chain. A valve should not ship while unresolved deviations or incomplete mandatory records remain open.
Manufacturing gates, failure exposure and auditable evidence
| Process gate | Decision or failure risk | Evidence expected | Release question |
|---|---|---|---|
| Contract and engineering review | Conflicting standards, incorrect pressure-temperature basis, missing service data or an unapproved material/trim selection | Approved datasheet, requirement register, drawing, bill of material, document-precedence rule and closed technical queries | Has the responsible reviewer frozen a buildable, testable baseline for the exact valve tags? |
| Material receipt and identification | Wrong grade, lost heat identity, certificate mismatch, unsuitable condition or unapproved substitution | Material certificate review, receiving report, component marking and PMI, hardness or supplementary checks when specified | Can each controlled pressure-boundary and trim component be traced to accepted source evidence? |
| Forming, heat treatment and repair | Casting or forging discontinuities, incorrect heat-treatment state, uncontrolled weld repair or a change outside the approved route | Supplier route records, heat-treatment charts, visual/NDE reports, repair map, approved procedure and disposition history | Were required hold points and approvals completed before the evidence became inaccessible? |
| Machining and in-process inspection | Insufficient wall, damaged sealing geometry, wrong bore/end preparation, dimensional drift or a mismatched actuator interface | Released drawing, machining traveler, measured critical dimensions, gauge status and inspection acceptance | Do recorded dimensions cover the characteristics that control fit, pressure boundary and sealing? |
| Assembly and pressure/function testing | Contamination, component mix-up, incorrect orientation, abnormal operating load, shell leakage or unacceptable closure leakage | Assembly checklist, component traceability, torque/thrust data where required, calibrated-instrument references and tag-specific test report | Does the test setup distinguish valve performance from fixture or procedure problems? |
| Coating, marking, dossier and shipment | Wrong nameplate, poor preservation, coating nonconformance, incomplete records or shipment of an unapproved deviation | Coating/marking inspection, final document index, nonconformance closure, release note, packing list and preservation record | Can the physical valve, shipping identity and approved manufacturing record book be reconciled before dispatch? |
Evidence packages that should remain connected across the process
Approved datasheet, drawings, bill of material, calculations or design evidence within the agreed scope, plus a controlled revision history.
Certificates, receiving status, heat/component identity and any specified verification establish what material entered the build.
Travelers, heat treatment, welding, repair, hardfacing, NDE and other special-process records show how controlled operations were performed.
Recorded critical dimensions and inspection status demonstrate that pressure-boundary, sealing and connection interfaces match the released design.
Procedure, valve identity, instruments, conditions, observed results, witness status and retest history support the stated acceptance.
Closed deviations, coating and marking checks, preservation, packing and the final document index connect the accepted valve to shipment.
Claims and shortcuts this page does not support
A generic flow chart is not a project manufacturing plan
The actual route depends on product construction, materials, class, service, purchaser intervention points and the approved inspection and test plan. Stages may be added, combined or made supplier-controlled only through the agreed quality plan.
Final pressure testing cannot recover missing process evidence
A passing test does not recreate lost material identity, validate an uncontrolled repair, prove all critical dimensions or demonstrate special-service qualification. Evidence must be captured while each activity is visible.
This page does not prove every listed capability
It describes a control framework. The manufacturing location, equipment, qualified processes, inspection scope, certifications and records available for a specific order must be confirmed during technical and quality review.
From requirement to auditable evidence
Information and records to define
How this resource should be used
Process-understanding and supplier-evaluation intent for engineers, EPC quality teams and buyers who need to see how valve requirements become controlled manufacturing stages, traceable evidence and a final release decision.
Raymon Valve technical content team. Final project decisions require the controlled documents and responsible engineer or quality reviewer.
The applicable valve product, material, dimensional, welding, NDE, pressure-test and project standards must be assigned in the requirement register with approved editions. This overview does not reproduce clauses or state that one route applies to every valve. The purchase order, approved drawings, procedures and ITP govern the actual build.
Technical scope reviewed 27 July 2026. Editions, procedures, acceptance criteria and product evidence must be reconfirmed before order.
Industrial Valve Manufacturing Process FAQ
What are the main stages of industrial valve manufacturing?
A typical controlled route includes contract and engineering review, material procurement and identification, casting or forging where applicable, heat treatment and special processes, machining, in-process inspection, assembly, pressure and functional testing, coating and marking, document review, preservation, packing and shipment release. The exact sequence must match the product and project.
How is material traceability maintained during valve production?
Heat or source identity is transferred through controlled markings and records from accepted material to components, assembly, valve serial or project tag and the final dossier. The required depth, including certificates, PMI or hardness checks, is defined by the order and inspection plan.
Does every valve follow the same manufacturing process?
No. Cast and forged bodies follow different forming routes, and construction, size, class, trim, actuation, service and purchaser requirements change the operations and evidence. A project-specific manufacturing and inspection plan is therefore necessary.
Which records should be reviewed before shipment?
Review the approved document index and required material, process, dimensional, assembly, pressure/function test, coating/marking, nonconformance and release records. The physical valve, tag/serial, packing identity and dossier should reconcile before authorization to ship.
