Valve Forging: Material Flow, Heat Treatment and Inspection Evidence

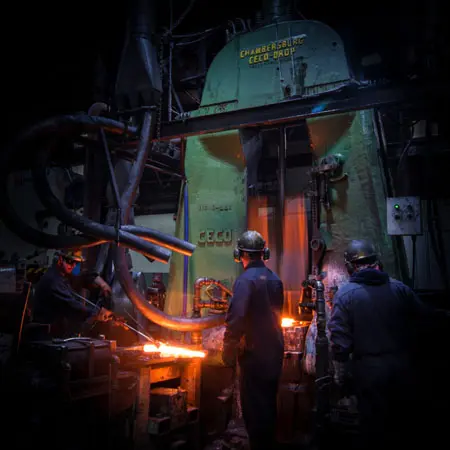

Valve forging shapes heated metal through controlled deformation to produce bodies, bonnets, stems, discs or other components with a defined material and heat-treatment condition. The engineering value of a forging comes from the complete route—not from the word forged alone. Starting-stock identity, heating range, reduction and deformation pattern, die or open-die controls, trimming, heat treatment, examination, machining allowance and test-lot relationship must be appropriate to the component geometry and service.
Six decisions that define a controlled valve-forging route
Billet, bar or ingot must match the specified material and remain linked to its heat certificate. Cutting, reheating, descaling and transfer between operations should not sever component identity.
Uniform heating, furnace control, soak and transfer time affect deformability, oxidation and microstructure. Overheating, underheating or excessive reheats can create problems that later machining may not reveal.
Reduction, work sequence and die fill should produce the required shape without laps, folds or poorly worked zones. Grain-flow claims require evidence relevant to the actual part and cannot be assumed from appearance.
Tool condition, alignment, flash removal and intermediate inspection influence dimensions and surface integrity. The chosen route must leave enough stock for cleanup while protecting minimum finished dimensions.
Normalizing, quenching, tempering, solution treatment or other specified cycles establish the final condition. Charts, coupon relationship and mechanical or hardness results must be traceable to the forging lot.
Visual, dimensional, surface and volumetric examination are selected for material, geometry and project risk. Accepted forging identity and inspection status must transfer to the machined part and final valve.
Forging conditions, likely origins and the evidence needed for disposition
| Observed condition | Potential process origin | Evidence to examine | Engineering disposition |
|---|---|---|---|
| Lap, fold or seam-like surface indication | Metal flow folding over itself, die mismatch, excessive scale, poor preform or unsuitable deformation sequence | Forging route, die condition, magnetic-particle or liquid-penetrant results as material permits, removal depth and final dimensions | Linear surface conditions require evaluation to the governing acceptance criteria; blending cannot reduce the component below drawing requirements. |
| Underfill or local dimensional shortage | Insufficient stock, low deformation temperature, poor die fill, misalignment or material loss during trimming | Preform and die data, forging dimensions, machining allowance, drawing limits and minimum-wall assessment | Do not recover a shortage by changing the finished geometry without approved engineering disposition. |
| Crack after forging or heat treatment | Low working temperature, excessive strain, thermal stress, quench severity, geometry transition or pre-existing stock discontinuity | Heating and heat-treatment charts, surface/volumetric NDE, crack location, microstructure or metallurgical review when required | Contain the lot, determine mechanism and apply the specified reject or approved repair route; pressure-boundary repairs may be restricted. |
| Scale, decarburization or surface loss | High-temperature exposure, furnace atmosphere, repeated heating or inadequate descaling control | Furnace history, surface examination, hardness/decarburization checks where specified and machining allowance | Confirm that cleanup removes affected material while preserving required finished dimensions and properties. |
| Unexpected hardness or mechanical result | Incorrect cycle, furnace nonuniformity, wrong lot relationship, alloy mismatch, sampling issue or inadequate tempering/solution treatment | Material certificate, heat identity, furnace charts, coupon location, test method, retest provisions and product checks | Follow the material specification's retest and disposition rules; do not average away an individual nonconforming result. |
| Ultrasonic or internal indication | Starting-stock discontinuity, insufficient working, internal crack, segregation or geometry-related response | Raw-stock examination, forging reduction/route, calibrated UT procedure, scan coverage, indication location and acceptance basis | Separate geometric responses from reportable indications and disposition only against the approved method and criteria. |
Forging evidence and the technical claim each record supports
Certificate, heat number, cut-piece control and receiving status establish the material identity entering the forging route.
Furnace or process data, route card, equipment and operation sequence show how the material was heated and worked.
Cycle charts, load identification, equipment status and cooling route support the declared final material condition.
Tensile, impact, hardness, corrosion or other specified results require a defined relationship between test specimen and production forging lot.
Reports define method, coverage, calibration, acceptance criteria, component identity and whether adequate machining stock remains.
Mark transfer, machining traveler and assembly records connect the accepted forging to the finished component, valve serial/tag and dossier.
Claims and shortcuts this page does not support
Forged does not automatically mean suitable
A forging can offer useful material-flow and section properties, but fitness still depends on alloy, route, heat treatment, geometry, examination, design and service. The construction must be evaluated for the actual valve.
Forging is not always superior to casting
Casting may be more appropriate for large or complex flow-path geometry, while forging may suit compact high-integrity components. Blanket rankings ignore size, design, producibility, inspection and lifecycle requirements.
This overview is not evidence for a supplied component
The source, starting stock, reduction route, property results, NDE, qualifications and traceability available for a project must be confirmed from order-specific documents before acceptance.
From requirement to auditable evidence
Information and records to define
How this resource should be used
Technical-learning and procurement-evaluation intent for engineers comparing forged valve components, understanding hot-working and heat-treatment risks, and defining the records needed to accept a forging for an industrial valve.
Raymon Valve technical content team. Final project decisions require the controlled documents and responsible engineer or quality reviewer.
The material specification, product standard, purchaser drawing, forging qualification, heat-treatment requirements and NDE method/acceptance documents may be separate. Applicable editions, lot definitions, test specimens, examination extent and repair restrictions must be agreed for the order. This page does not certify a forging process or supplier.
Technical scope reviewed 27 July 2026. Editions, procedures, acceptance criteria and product evidence must be reconfirmed before order.
Valve Forging Process and Quality Control FAQ
What is a forged valve body?
It is a valve pressure-boundary body produced from controlled hot-worked starting stock and then heat treated, machined and inspected to an approved design. The term describes the forming route; it does not by itself establish material grade, properties, NDE level or service suitability.
What is the difference between forged and cast valve bodies?
Forging shapes solid stock by deformation, while casting solidifies molten metal in a mold. Forging can be advantageous for compact components and controlled material flow; casting can produce larger or more complex passages efficiently. Selection depends on design, size, alloy, pressure, service, examination and supply requirements.
Why is heat treatment important after forging?
Hot working leaves a thermal and microstructural history. The specified heat-treatment cycle is used to establish the required material condition and mechanical properties. Traceable furnace charts and lot-related test results are therefore key evidence.
How are forged valve components inspected?
The plan may include material-certificate review, visual and dimensional checks, hardness or mechanical tests, and surface or ultrasonic examination as required. Method, coverage and acceptance must suit the material, geometry and controlled project documents.
