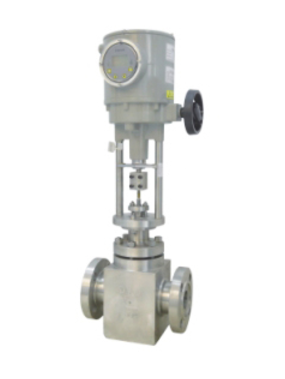

From product name to an engineered Electric Stainless Steel Control Valve requirement
A Electric Stainless Steel Control Valve is evaluated for modulating process control. A throttling element changes effective flow area in response to a control signal. Installed characteristic, Cv, pressure recovery, trim velocity and actuator resolution determine control quality.
Use the name as a starting point. Technical approval still depends on electric actuator torque/thrust, duty rating, power, controls and fail strategy; stainless-steel pressure/wetted components with grade and corrosion-boundary control, the complete service envelope, installed interfaces and measurable acceptance.
Electric
Electric actuator torque/thrust, duty rating, power, controls and fail strategy. State power supply, control signal, duty cycle, travel time, enclosure, hazardous area, manual override and fail requirement.
Stainless Steel
Stainless-steel pressure/wetted components with grade and corrosion-boundary control. State exact component grades, fluid chemistry, temperature, chloride/contaminants, welding, PMI and surface requirements.
Application envelope
Confirm every pressure, temperature, differential-pressure and cycling case for this Electric Stainless Steel Control Valve.
Order-specific boundary
Website content is not tag-level certification. Suitability and supplied scope are established only by the accepted quotation, datasheet and drawing.
Published configuration data for Electric Stainless Steel Control Valve—confirmation required
The values below are transcribed from the previous public product listing so useful model information is not lost during the quality rebuild. They are not a universal available range, certificate or order commitment. Confirm every value in the accepted quotation, tag datasheet and approved drawing.
| Parameter | Previous listing | Required order check |
|---|---|---|
| Product type | Not stated in the previous public listing. | Confirm the exact model, construction and supplied configuration. |
| Nominal size / DN | 10-200 | Confirm each ordered tag and available trim or bore combination. |
| Pressure rating | PN16-100 ANSI Class 150-300 | Confirm governing rating standard, class and temperature basis. |
| Temperature | 20~450℃ | Confirm design, operating, startup and upset metal temperatures. |
| End connection | GB, DIN, ANSI, JIS, etc. | Confirm standard, facing, schedule, bore and mating interface. |
| Flow coefficient / characteristic | quick opening, a linear, parabolic, equal percentage | Confirm calculated cases, trim, travel and installed behavior. |
| Body / bonnet material | Not stated in the previous public listing. | Confirm component grade, product form, heat treatment and records. |
| Trim / closure material | Stainless Steel Optional: – Oil-free degreasing treatment Features: -Using the upper guide structure, the action is reliable and the stability is good -Spool surface CNC machining, high adjustment precision. According to the requirements of the working conditi | Confirm every wetted component, hardness, coating and pairing. |
| Seat / seal material | Not stated in the previous public listing. | Confirm compatibility, leakage criterion and pressure-temperature limit. |
| Operation / actuator | Not stated in the previous public listing. | Confirm worst-case load, fail state, utilities, speed and accessories. |
| Leakage basis | Class IV, V, and V Material: -Body, Bonnet: Stainless Steel | Confirm standard, edition, test direction, medium and measurable acceptance. |
Evidence boundary: where the previous listing was incomplete or awkwardly translated, this page does not guess a value. Raymon Valve should replace provisional web data with the controlled product datasheet when it is available.
Close the questions hidden behind the product description
The table turns application inputs for Electric Stainless Steel Control Valve into review points and tag-linked evidence.
| Review area | Engineering question | Required record |
|---|---|---|
| Sizing cases | Minimum, normal, maximum, startup and upset cases require verified fluid properties and pressures. | Freeze the accepted value in the tag datasheet and verify it on the approved drawing. |
| Trim duty | Cavitation, flashing, choked gas flow, noise, erosion and rangeability must be evaluated. | Freeze the accepted value in the tag datasheet and verify it on the approved drawing. |
| Actuator | Required thrust or torque, fail action, stroking speed and utility supply must be coordinated. | Name the controlling document, responsible reviewer and inspection or calculation record. |
| Accessories | Positioner, solenoids, limit switches, air set and hazardous-area requirements form one package. | Freeze the accepted value in the tag datasheet and verify it on the approved drawing. |
| Electric | State power supply, control signal, duty cycle, travel time, enclosure, hazardous area, manual override and fail requirement. | State the measurable requirement and connect it to a drawing, procedure or test result. |
| Stainless Steel | State exact component grades, fluid chemistry, temperature, chloride/contaminants, welding, PMI and surface requirements. | Resolve the open point before release and retain tag-specific evidence in the final dossier. |
A standard title alone is not acceptance. Map its scope, edition and required evidence to the valve tag.
Application limits to examine before technical approval
Do not size a control valve from pipe diameter alone; incorrect Cv can cause poor resolution, noise, cavitation or premature trim damage. Also review orientation, transients, cycling, contamination, access and consequences of internal or external leakage.
Make every critical claim traceable to the valve tag
Evidence should identify the supplied configuration, revision, heat or lot and applicable test procedure. Use the valve standards guide to separate product, rating, dimensional, end-connection and test scope.
Design basis
Controlled configuration, interface drawing, calculations and closed technical clarifications.
Material identity
Tag-to-component material mapping with certificates, processing records and identity checks.
Inspection and tests
Approved ITP, procedures, calibrated instruments, results, witness records and NCR closeout.
Electric fail action may require stored energy or an external system; loss-of-power behavior must be explicit. The phrase stainless steel does not define one corrosion rating; grade, fabrication and environment control suitability.
Qualification, testing and material suitability are conditional on the approved scope and supplied records for the actual configuration.
Information needed for a tag-level technical offer
Provide a controlled valve list or datasheet covering every operating case, interface, material, operation, standard, inspection, test and document requirement.
For a Electric Stainless Steel Control Valve, also highlight electric actuator torque/thrust, duty rating, power, controls and fail strategy; stainless-steel pressure/wetted components with grade and corrosion-boundary control. Keep an open-point register for any item that could change safety, function, cost or delivery.
Ask for a configuration tied to the real duty
Provide the actual application; the response will separate confirmed requirements from assumptions and identify the checks still required.
Follow the product, application and inspection route
Product family
Compare the main constructions and selection boundaries in this valve family.
Corrosion-Resistance Review
Resolve interacting pressure, temperature, corrosion, wear or project risks.
Testing and inspection
Define pressure-test scope, acceptance, instruments, witness points and records.
Convert Electric Stainless Steel Control Valve from a broad request into an auditable engineering decision
This section addresses the decision a visitor is likely trying to complete—not merely the meaning of the page title. Use it to identify required inputs, compare the proposal and specify the record that will prove acceptance.
| Decision | What to do | Evidence to retain |
|---|---|---|
| Problem statement | For Electric Stainless Steel Control Valve, define the required system outcome, failure consequence and measurable acceptance before choosing hardware. | Functional requirement |
| Feasible routes | Compare at least the practical construction, material, sealing and actuation alternatives, including reasons for rejection. | Option and trade-off matrix |
| Boundary conditions | Check every normal, transient, startup, shutdown, maintenance and utility-loss case that can change the solution. | Approved application data |
| Validation | Connect each claimed benefit to a calculation, drawing, qualification, inspection or package-level test that applies to the order. | Verification and evidence plan |
How this Electric Stainless Steel Control Valve guide should be used
This page does not claim that a named person, certificate, qualification, installed project or performance result applies to a future order. Product compliance is confirmed only when the accepted quotation, approved drawing, procedures and final manufacturing/test records identify the supplied configuration.
Technical requirements and standards can change. Verify the official source, contract edition, project precedence and purchaser options. See our technical content review and evidence policy, company information, inspection approach or submit a correction or application question.
Electric Stainless Steel Control Valve questions
What information is required to select a Electric Stainless Steel Control Valve?
Provide the medium and composition, all pressure and temperature cases, nominal size, flow or differential pressure where relevant, required function, end connections, materials, shutoff criterion, operation, standards, inspection and documentation. For this configuration, the review must specifically address electric actuator torque/thrust, duty rating, power, controls and fail strategy; stainless-steel pressure/wetted components with grade and corrosion-boundary control.
Which standards apply to a Electric Stainless Steel Control Valve?
The answer depends on the product construction, project jurisdiction and purchaser specification. A product standard may cover design scope while separate standards govern pressure-temperature rating, dimensions, ends, pressure testing, fire safety, emissions or materials. Electric fail action may require stored energy or an external system; loss-of-power behavior must be explicit. The phrase stainless steel does not define one corrosion rating; grade, fabrication and environment control suitability.
How should Electric Stainless Steel Control Valve pressure and leakage testing be specified?
Separate pressure-boundary, closure, functional and any special testing. Record the procedure, edition, duration, allowable leakage, intervention point and final evidence.
Can a Electric Stainless Steel Control Valve be supplied with an actuator?
Yes when the valve/actuator interface and load cases are engineered together. Define safe state, utility loss, speed, frequency, accessories, feedback, interlocks and assembly-level testing.
When should a Electric Stainless Steel Control Valve not be selected?
Do not select it when its qualified construction cannot satisfy the process, shutoff, materials, dynamics, maintenance or documentation requirements. Do not size a control valve from pipe diameter alone; incorrect Cv can cause poor resolution, noise, cavitation or premature trim damage. The alternative should be chosen only after comparing the complete service duty.
