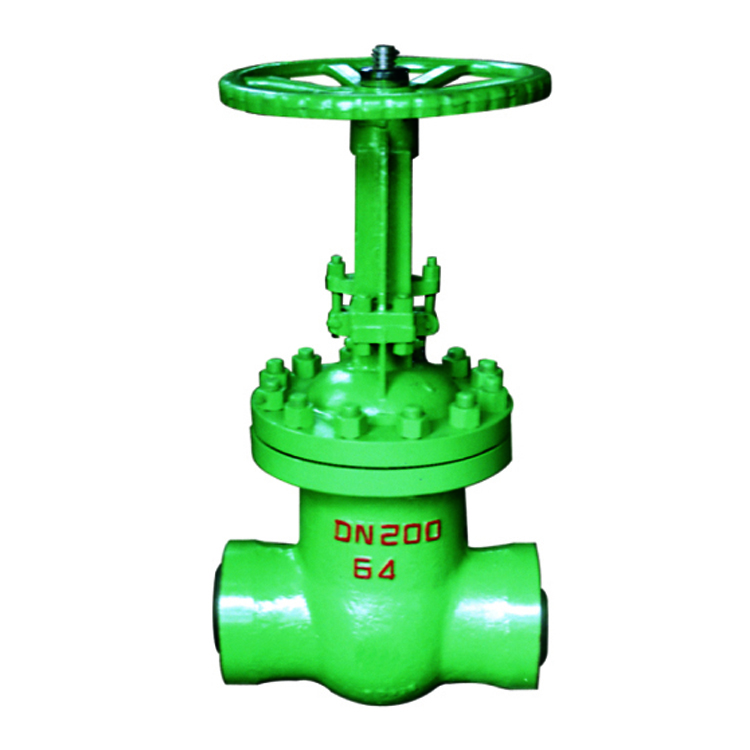

From product name to an engineered NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve requirement
A NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve is evaluated for linear full-open or full-closed isolation. A gate moves across the flow path. Wedge or slab geometry, seat arrangement, bonnet construction, stem loading and body cavity design control sealing and operability.
The product name narrows the route but does not complete the specification. Resolve butt-welded end preparation, field welding and post-installation inspection; vacuum isolation, air-inleakage control and external-pressure conditions together with the medium, operating cases, piping interface, maintenance and evidence.
Butt-Welded
Butt-welded end preparation, field welding and post-installation inspection. Define end standard, schedule/bore, bevel, material compatibility, welding procedure, heat treatment and field NDE.
Vacuum
Vacuum isolation, air-inleakage control and external-pressure conditions. Provide absolute pressure, evacuation rate, allowable air leakage, flow direction, temperature, cleanliness and actuation cases.
Application envelope
Confirm every pressure, temperature, differential-pressure and cycling case for this NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve.
Order-specific boundary
Published information supports initial screening; final size, class, materials, trim, operation, tests and documents are fixed in approved order records.
Published configuration data for NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve—confirmation required
The values below are transcribed from the previous public product listing so useful model information is not lost during the quality rebuild. They are not a universal available range, certificate or order commitment. Confirm every value in the accepted quotation, tag datasheet and approved drawing.
| Parameter | Previous listing | Required order check |
|---|---|---|
| Product type | Not stated in the previous public listing. | Confirm the exact model, construction and supplied configuration. |
| Nominal size / DN | DN50-DN800 | Confirm each ordered tag and available trim or bore combination. |
| Pressure rating | Not stated in the previous public listing. | Confirm governing rating standard, class and temperature basis. |
| Temperature | Not stated in the previous public listing. | Confirm design, operating, startup and upset metal temperatures. |
| End connection | Not stated in the previous public listing. | Confirm standard, facing, schedule, bore and mating interface. |
| Flow coefficient / characteristic | Not stated in the previous public listing. | Confirm calculated cases, trim, travel and installed behavior. |
| Body / bonnet material | Not stated in the previous public listing. | Confirm component grade, product form, heat treatment and records. |
| Trim / closure material | Not stated in the previous public listing. | Confirm every wetted component, hardness, coating and pairing. |
| Seat / seal material | Not stated in the previous public listing. | Confirm compatibility, leakage criterion and pressure-temperature limit. |
| Operation / actuator | Not stated in the previous public listing. | Confirm worst-case load, fail state, utilities, speed and accessories. |
| Leakage basis | Not stated in the previous public listing. | Confirm standard, edition, test direction, medium and measurable acceptance. |
Evidence boundary: where the previous listing was incomplete or awkwardly translated, this page does not guess a value. Raymon Valve should replace provisional web data with the controlled product datasheet when it is available.
Build the technical requirement before approving the model
Use the matrix to close decisions often hidden behind the short description “NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve.”
| Review area | Engineering question | Required record |
|---|---|---|
| Gate construction | Wedge, parallel slide, slab or knife designs serve different pressure, temperature and solids duties. | Resolve the open point before release and retain tag-specific evidence in the final dossier. |
| Bonnet and stem | Bolted, welded or pressure-seal bonnets and rising or non-rising stems affect maintenance and thrust. | Name the controlling document, responsible reviewer and inspection or calculation record. |
| Bore and cavity | Minimum bore, pigging, equalization, vents and drains must be defined where applicable. | Capture the selection basis, approved deviation if any and the record used for acceptance. |
| Operating duty | Gate valves normally require full-open/full-closed operation; throttling exposure needs a separate review. | Capture the selection basis, approved deviation if any and the record used for acceptance. |
| Butt-Welded | Define end standard, schedule/bore, bevel, material compatibility, welding procedure, heat treatment and field NDE. | Resolve the open point before release and retain tag-specific evidence in the final dossier. |
| Vacuum | Provide absolute pressure, evacuation rate, allowable air leakage, flow direction, temperature, cleanliness and actuation cases. | Make this requirement auditable through the order datasheet, design review and inspection plan. |
A standard title alone is not acceptance. Map its scope, edition and required evidence to the valve tag.
Where this configuration may fit—and what can make it fail
Avoid prolonged throttling unless the selected construction is explicitly qualified for it; partial opening can damage gates and seats. Also review orientation, transients, cycling, contamination, access and consequences of internal or external leakage.
Request evidence that matches the supplied design
Generic examples may explain capability but cannot close an order requirement unless they apply to the delivered valve. Use the valve standards guide to separate product, rating, dimensional, end-connection and test scope.
Design basis
Tag requirements, design review, materials list and approved exception register.
Material identity
Tag-to-component material mapping with certificates, processing records and identity checks.
Inspection and tests
Inspection releases, controlled test methods, instrument identity, measurements and final acceptance.
A butt-welded interface must be coordinated with the piping material, qualified procedure and installed inspection plan. Vacuum suitability includes external-pressure stability and air leakage; a pressure rating alone is insufficient.
No statement here is an unqualified certification claim; standards, editions and evidence remain subject to project review.
Data to send for a technically complete quotation
Provide a controlled valve list or datasheet covering every operating case, interface, material, operation, standard, inspection, test and document requirement.
For a NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve, also highlight butt-welded end preparation, field welding and post-installation inspection; vacuum isolation, air-inleakage control and external-pressure conditions. Keep an open-point register for any item that could change safety, function, cost or delivery.
Request a tag-level technical review
Provide the actual application; the response will separate confirmed requirements from assumptions and identify the checks still required.
Use the related pages to close remaining decisions
Convert NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve from a broad request into an auditable engineering decision
This section addresses the decision a visitor is likely trying to complete—not merely the meaning of the page title. Use it to identify required inputs, compare the proposal and specify the record that will prove acceptance.
| Decision | What to do | Evidence to retain |
|---|---|---|
| Problem statement | For NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve, define the required system outcome, failure consequence and measurable acceptance before choosing hardware. | Functional requirement |
| Feasible routes | Compare at least the practical construction, material, sealing and actuation alternatives, including reasons for rejection. | Option and trade-off matrix |
| Boundary conditions | Check every normal, transient, startup, shutdown, maintenance and utility-loss case that can change the solution. | Approved application data |
| Validation | Connect each claimed benefit to a calculation, drawing, qualification, inspection or package-level test that applies to the order. | Verification and evidence plan |
How this NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve guide should be used
This page does not claim that a named person, certificate, qualification, installed project or performance result applies to a future order. Product compliance is confirmed only when the accepted quotation, approved drawing, procedures and final manufacturing/test records identify the supplied configuration.
Technical requirements and standards can change. Verify the official source, contract edition, project precedence and purchaser options. See our technical content review and evidence policy, company information, inspection approach or submit a correction or application question.
NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve questions
What information is required to select a NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve?
Provide the medium and composition, all pressure and temperature cases, nominal size, flow or differential pressure where relevant, required function, end connections, materials, shutoff criterion, operation, standards, inspection and documentation. For this configuration, the review must specifically address butt-welded end preparation, field welding and post-installation inspection; vacuum isolation, air-inleakage control and external-pressure conditions.
Which standards apply to a NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve?
The answer depends on the product construction, project jurisdiction and purchaser specification. A product standard may cover design scope while separate standards govern pressure-temperature rating, dimensions, ends, pressure testing, fire safety, emissions or materials. A butt-welded interface must be coordinated with the piping material, qualified procedure and installed inspection plan. Vacuum suitability includes external-pressure stability and air leakage; a pressure rating alone is insufficient.
How should NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve pressure and leakage testing be specified?
Define the test configuration and measurable acceptance rather than requesting a generic factory test. Include calibrated instruments, valve position, pressure direction and tag-linked results.
Can a NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve be supplied with an actuator?
Automation requires more than matching a mounting flange. Verify maximum load through travel, minimum supply, coupling/stem capacity, stops, controls and required failure response.
When should a NDKZ64H-Y Butt-Welded Vacuum Isolation Gate Valve not be selected?
Do not select it when its qualified construction cannot satisfy the process, shutoff, materials, dynamics, maintenance or documentation requirements. Avoid prolonged throttling unless the selected construction is explicitly qualified for it; partial opening can damage gates and seats. The alternative should be chosen only after comparing the complete service duty.
