Valve Cycle Life Testing: Duty Profile, Failure Criteria and Evidence

A valve cycle-life claim has no engineering meaning until one cycle, the applied pressure differential, temperature, media, speed, dwell, actuator settings, maintenance rules and failure criteria are defined. Endurance testing can compare designs or qualify a configuration for a stated duty, but accelerated laboratory cycling may not reproduce corrosion, solids, thermal transients or field installation loads. A useful protocol connects the operating profile to the actual application and records performance drift throughout the test, not only a final open/close count. Baseline and interval data also reveal whether performance degraded gradually or failed suddenly.

Defined duty cycleLoad and environmentPerformance trendingFailure-mode inspection

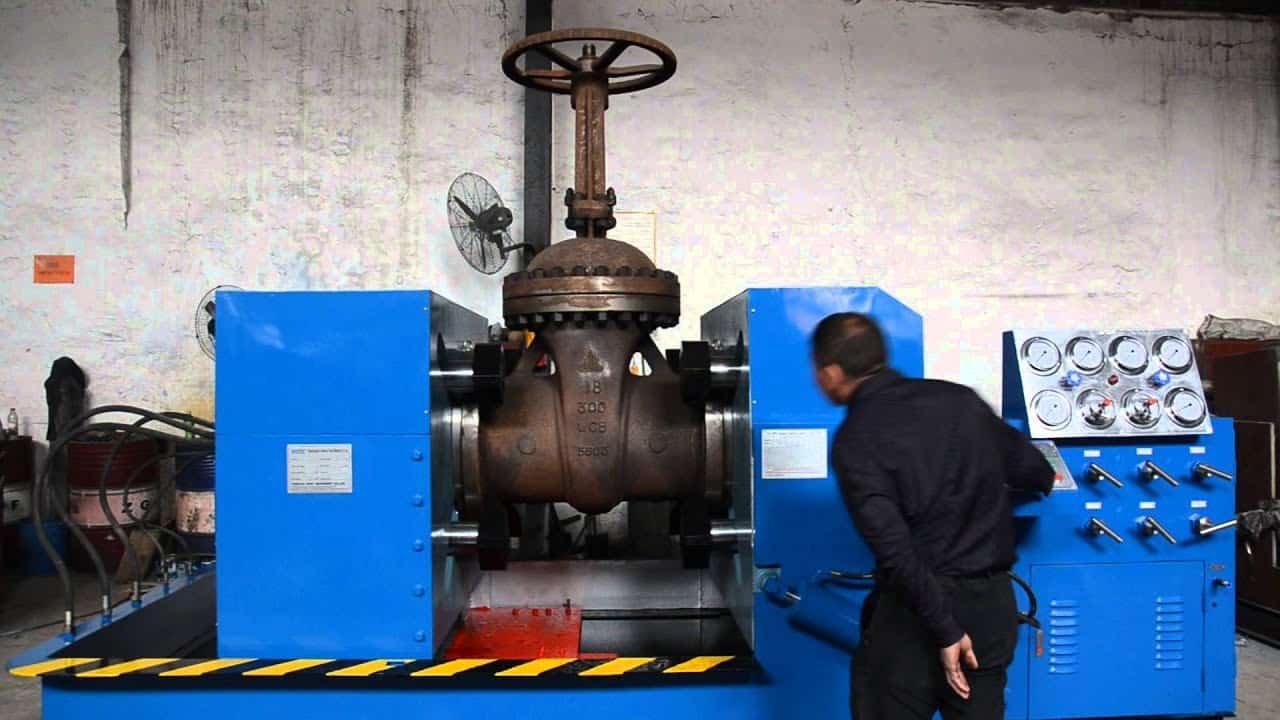

Technical scope

Specify the operating cycle before specifying a cycle count

Cycle definition

State start/end positions, stroke limits, opening/closing sequence, dwell and whether partial strokes count.

Differential pressure

Define pressure and flow during movement, seating and unseating; no-load cycling can miss dominant wear mechanisms.

Temperature and media

Use representative conditions or state the limitations of substitutes for corrosive, erosive, cryogenic or hot service.

Actuation settings

Record torque/thrust limits, speed, control logic, fail action and any adjustments during the program.

Interim inspections

Trend leakage, operating torque, travel time, packing behavior and external condition at planned intervals.

End-of-test analysis

Disassemble where required and document seats, stem/shaft, bearings, seals, coating and wear locations against acceptance criteria.

Evidence matrix

Translate field duty into a controlled endurance protocol

Duty inputProtocol decisionData to trendRisk if omitted
Operating frequencyCycle rate, dwell and total duration without unrealistic heating or lubrication effects.Cycle count, timestamps, component temperature and interruptions.Accelerated test may create or hide wear mechanisms unlike service.
Pressure/flow profileDifferential during movement and closure, direction, pump/system interaction and seat load.Upstream/downstream pressure, flow where relevant and torque/thrust.No-load cycling can overstate endurance and underrepresent seat or bearing load.
Temperature historySteady, cyclic or transient temperature and stabilization requirements.Valve/body/ambient temperature and thermal cycle count.Seal relaxation, thermal expansion and material behavior may be missed.
Media and contaminationActual fluid or justified substitute, cleanliness and particles/solids dosing.Fluid condition, filtration, solids concentration and change intervals.Compatibility, erosion, deposition or lubrication behavior may not be represented.
Actuator/control behaviorPower source, speed, limits, fail action, position feedback and allowed adjustment.Current/pressure, stroke time, position, alarms and setting changes.An oversized or repeatedly adjusted actuator can conceal valve degradation.
Acceptance and teardownLeakage, operability, external containment, dimensional wear and component condition.Baseline/interim/final measurements, photographs and failed-cycle history.A final cycle count alone gives no evidence of functional performance.
Engineering evidence

Evidence that supports a bounded life-test conclusion

Test article identity

Size, class, materials, seats, packing, bearings and actuator match the claimed design.

Baseline performance

Leakage, torque/thrust, stroke time and condition are recorded before cycling.

Continuous controls

Cycle, pressure, temperature and actuator data demonstrate the intended duty was applied.

Maintenance log

Lubrication, packing adjustment, repairs and pauses remain visible in the result.

Failure criteria

Leakage, loss of travel, torque rise, external leakage or damage triggers are defined in advance.

Coverage statement

The report explains what sizes, variants and services the tested configuration can support.

Technical boundaries

Claims and shortcuts this page does not support

Cycle count without duty is marketing, not engineering evidence

The loads, environment, speed, maintenance and acceptance criteria determine what the count represents.

Accelerated cycling can change the failure mechanism

Heat generation, inadequate dwell or unrealistic fluid conditions can make results non-representative.

One successful specimen does not establish statistical reliability

Sample size, manufacturing variation and confidence objectives must be defined when reliability claims are required.

Controlled workflow

From requirement to auditable evidence

1. Describe the field missionDocument cycles, pressure, temperature, media, speed, control and maintenance.
2. Define the qualification claimState the exact design family and performance the test is intended to support.
3. Approve the protocolSet cycle definition, loads, monitoring, intervals, failures and deviations.
4. Record baseline and runCapture performance before testing and maintain traceable continuous/interim data.
5. Control interruptionsDocument every adjustment, repair, instrument issue and unplanned stop.
6. Inspect and issue conclusionAnalyze results and teardown evidence, then state coverage and limitations.
Project checklist

Information and records to define

Application duty profile and annual/mission cycles
Definition of one full or partial cycle
Pressure differential, flow direction and seat load
Media, cleanliness/solids and temperature history
Actuator sizing, settings, power and stroke speed
Baseline/interim leakage, torque and travel measurements
Failure criteria, maintenance and interruption log
Final teardown, coverage statement and raw-data package
Technical authority and scope

How this resource should be used

Primary search intent

Engineering guidance for specifying valve cycle-life or endurance tests and evaluating what a reported cycle count actually demonstrates.

Technical content owner

Raymon Valve technical content team. Final project decisions require the controlled documents and responsible engineer or quality reviewer.

Standards boundary

The valve product standard, project qualification specification and approved endurance protocol control. This page makes no universal cycle-life claim and does not equate accelerated laboratory results with every field environment or valve variant.

Review status

Technical scope reviewed 27 July 2026. Editions, procedures, acceptance criteria and product evidence must be reconfirmed before order.

Frequently asked questions

Valve Cycle Life and Endurance Testing FAQ

What counts as one valve cycle?

The protocol must define it. Commonly it is a complete movement from one specified end position to the other and back, but partial-stroke or one-way definitions can differ. State start, end, dwell and count logic.

Should a valve be cycle-tested under pressure?

The pressure/flow conditions should represent the intended qualification question. No-load functional cycling may be useful, but it does not demonstrate endurance under seating, flow or differential-pressure loads.

Can life testing predict exact field service life?

Usually not by itself. It supports performance under the defined laboratory duty; corrosion, installation loads, maintenance, process transients and manufacturing variation affect actual life.

What data should be included besides the cycle count?

Include specimen configuration, duty profile, pressure/temperature/media, speed, actuator data, baseline/interim/final leakage and torque, interruptions, maintenance, failures and teardown findings.
